When upgrading gasoline vehicles to CNG, choosing the right CNG pressure reducer directly affects system reliability, engine performance and fuel economy. For 4-cylinder engines widely used in passenger cars, taxis and ride-hailing fleets in Latin America, Southeast Asia and Central Asia, the reducer acts as the core part of CNG conversion kits.
This guide explains key points to select a CNG reducer for 4-cylinder engines and compares traditional two-stage regulators with our HD05 CNG pressure reducer. View product page:
Key Factors to Select CNG Pressure Reducer for 4-Cylinder Engines
Conversion engineers and fleet buyers should check these four main parameters before ordering:
Engine Displacement & Power: Most 4-cylinder engines are 1.2L–2.5L (60kW–110kW). The reducer must deliver steady gas flow at idle and acceleration without pressure drop.
Pressure Stability & Response: It reduces high-pressure CNG (200–220 bar) down to stable working pressure at 1.5–2.0 bar smoothly.
Heat Exchange & Anti-freezing: Gas expansion causes temperature drop. Coolant heating prevents frosting inside the reducer.
Material & Service Life: Aluminum body offers corrosion resistance and longer diaphragm service time.
HD05 CNG Reducer VS Traditional CNG Regulators

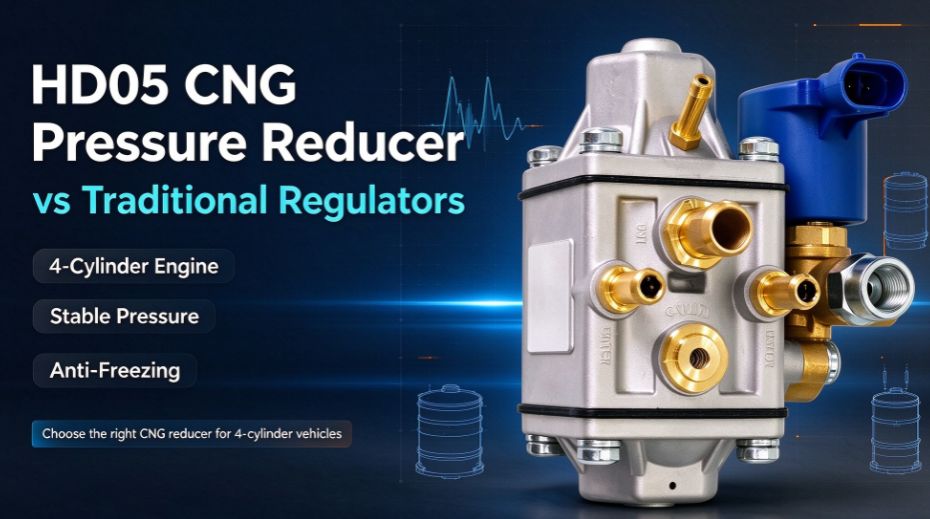

HD05 is our self-developed sequential CNG reducer, fully tested and certified to GB/T20735‑2006. Below comparison helps distributors and installers pick the correct model.
| Item | Traditional CNG Regulator | HD05 CNG Pressure Reducer |
|---|---|---|
| Engine Range | 1.0L–1.6L | Up to 2.0L / 2.5L 4-cylinder engines, cars, light trucks, mini buses |
| Body Material | Cast aluminum | Precision CNC machined aluminum |
| Pressure Control | Basic two-stage reduction | High stability two-stage control, max flow 88 Nm³/h, outlet 0.09‑0.32 MPa |
| Cold Resistance | Easy to freeze under high flow | Optimized water jacket, working temp -40℃ ~ +120℃ |
| Load Performance | Pressure fluctuation under heavy load | Stable output for CNG ECU and injector rail |
| Maintenance | Diaphragm wears fast, frequent replacement | Long-life diaphragm, low maintenance, 12-month warranty |
| Specifications | - | DC12V, CNG fuel, size 15×10×14cm, black/silver housing optional |
Benefits of HD05 CNG Reducer for 4-Cylinder CNG Conversion
1. Stable Pressure for Sequential Injection
Sequential injection ECU requires precise and consistent gas pressure. HD05 keeps steady outlet pressure during throttle changes to avoid engine stall and lean burn errors. Max flow 88 Nm³/h supports heavy-duty taxi and fleet operation.
2. Excellent Anti-freezing Performance
Enlarged internal water channel improves coolant heat transfer. No internal frosting even for continuous taxi operation or cold climates down to -40℃.
3. CNC Machined Aluminum & Safety Compliance
Precision CNC manufacturing ensures tight tolerance and reliable sealing to reduce gas leakage. It meets GB/T20735‑2006 standard for vehicle gas fuel systems.
4. Wide Application & OEM Support
Besides 4-cylinder passenger cars and taxis, HD05 also works for light trucks and small mini buses. Custom housing color and OEM modifications are available.
Conclusion & Supply Information
For distributors, installation workshops and fleet buyers seeking reliable and cost-effective CNG reducers for 4-cylinder conversion, HD05 is a great solution.
Sichuan Yuncheng Vehicle Gas Equipment Co., Ltd.is a professional manufacturer. We provide OEM/ODM customization, technical support and bulk wholesale. One-stop supply for full CNG conversion kits, ECUs and injector rails.
Frequently Asked Questions
Q1: What data do I need to provide to choose a CNG reducer?
A: Please tell us application type, engine displacement, power, required gas flow and connection size. We will recommend the proper model and quote quickly.
Q2: Are you manufacturer or trading company?
A: We are original manufacturer. Our products include CNG reducers, injector rails, CNG ECU, switches and emulator kits. OEM & ODM available.
Q3: What is MOQ for HD05 CNG reducer?
A: Sample order is acceptable. MOQ 1pc for stock items.
Q4: What is your lead time?
A: 3‑7 working days for orders under 100 sets after payment. Large batches will be negotiated separately.
Q5: Which payment terms do you accept?
A: T/T, L/C and Alibaba Trade Assurance. Mass order: 30% deposit, 70% balance before shipment.
Q6: What warranty for HD05?
A: 12-month factory warranty. Our team provides technical support for installation and troubleshooting. Sample quality matches mass production.
