Products Description

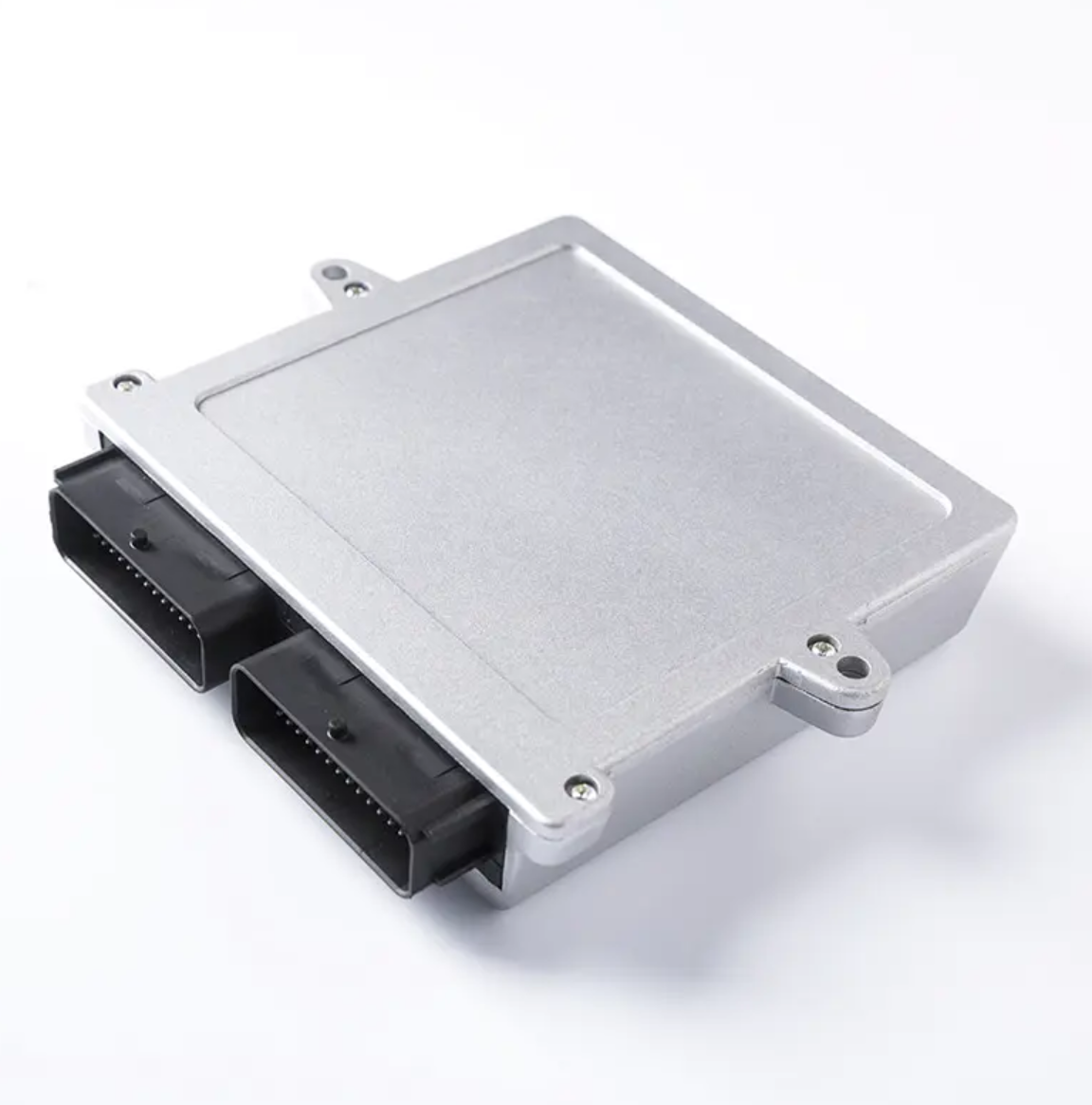

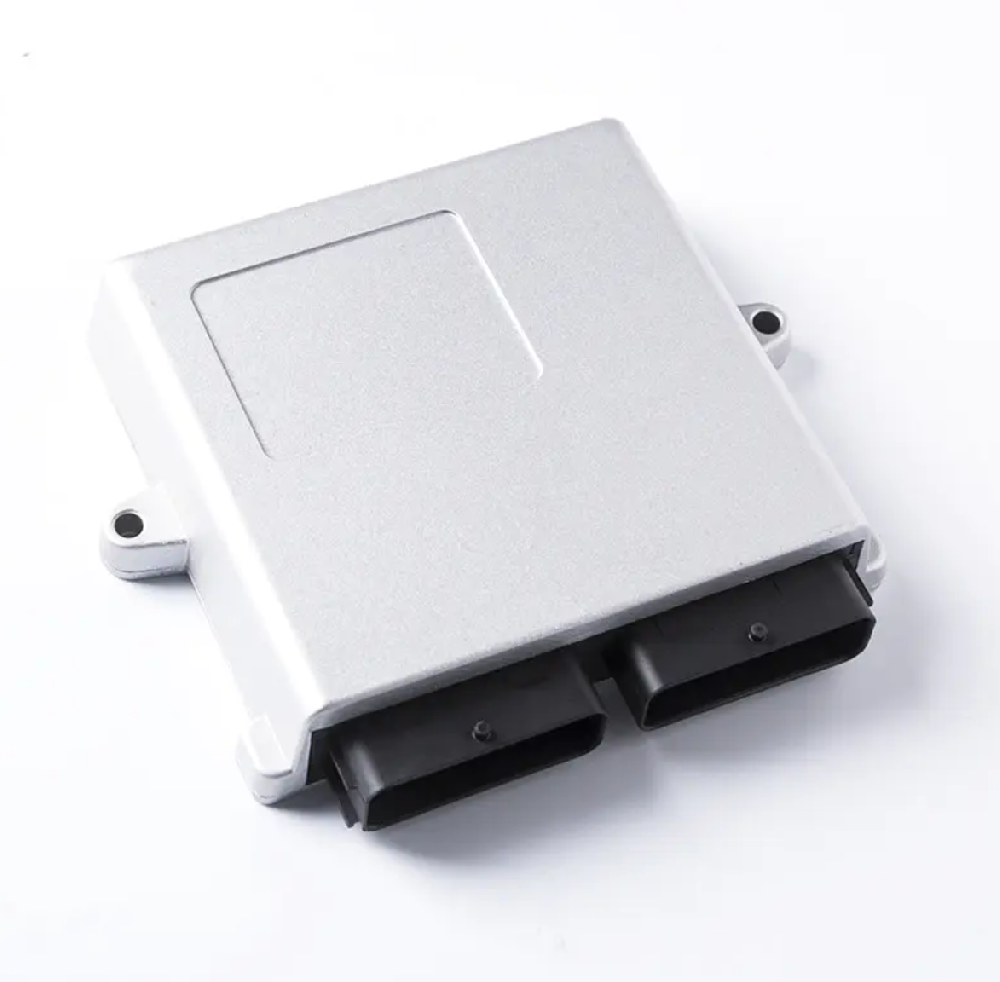

Looking for a CNG/LPG ECU for a 6-cylinder or 8-cylinder vehicle? Start by checking the cylinder configuration, wiring, diagnostic interface and operating voltage. This mini ECU is specified for DC 10–16V operation, a 56-pin connection and an RS232 diagnostic connector, with a listed working temperature range of -20 to 105°C.
What Should You Check Before Choosing a Gas ECU?
One common mistake when replacing a gas ECU is assuming that the connector or cylinder count is enough to confirm compatibility. It is not.
The ECU needs to match the vehicle's fuel injection signals, the gas injector setup, wiring harness and calibration requirements. If you are replacing an existing controller, compare the model and wiring information before ordering.
Mini CNG/LPG ECU Specifications
| Item | Specification |
|---|---|
| Model | 2568 |
| Supply / Working Voltage | DC 10–16V |
| Working Temperature | -20 to 105°C |
| Current Absorption with Actuators Disabled | Imax ≥ 0.5A |
| Diagnostic Interface | RS232 |
| Connector | 56-pin |
| Engine Configuration | 4 / 6 / 8 cylinders |
| Fuel Type | CNG / LPG |
Common Problems When Replacing a CNG/LPG ECU
The Connector Fits, but the ECU Does Not Work
Yeah, that can happen. A matching connector does not mean the pinout is the same. Check the wiring diagram for the exact ECU version and confirm the harness before powering it up.
The Engine Runs on Petrol but Not on Gas
That does not automatically mean the ECU is bad. Check the diagnostic information, gas pressure, injector connections and ECU configuration. If the problem started after an ECU replacement, verify the wiring and calibration first.
The Vehicle Hesitates When Switching to Gas
Could be calibration, a pressure issue or a signal problem. Check how the system switches between fuels and whether the ECU is receiving the expected engine and sensor signals. Avoid changing random settings before reading the fault information.
The Diagnostic Software Cannot Connect
Check the diagnostic cable, interface type, software version and communication settings. This product lists RS232 as its diagnostic connector, so confirm that the diagnostic equipment supports the actual interface used by the ECU.
Frequently Asked Questions
Is this ECU suitable for both 6-cylinder and 8-cylinder vehicles?
The supplied product description lists 4-, 6- and 8-cylinder configurations. The exact version still needs to be matched with the engine and gas conversion system.
Can I use this ECU as a direct replacement for my old controller?
Only after checking the ECU model, pinout, harness, fuel system and calibration requirements. A similar connector or cylinder count is not enough to confirm a direct replacement.
Does the 56-pin connector mean it is plug-and-play?
No. The connector specification identifies the connection type, but pin assignments and wiring requirements may differ between ECU versions.
What does RS232 mean for diagnostics?
It identifies the diagnostic interface listed for the product. Check which cable and software are required for your particular ECU before attempting communication.
What if the ECU gets hot?
The listed working temperature range is -20 to 105°C. If the unit is exposed to temperatures outside its specified range, or shows unusual heating, have the installation and electrical system checked rather than continuing to operate it.
What information should I send when asking for an ECU quote?
Send the engine cylinder count, vehicle model, fuel type, existing ECU model, connector and harness details, and the intended application. If it is a replacement, a clear photo of the old ECU label and connector can help with initial identification.
Related Gas Conversion Components

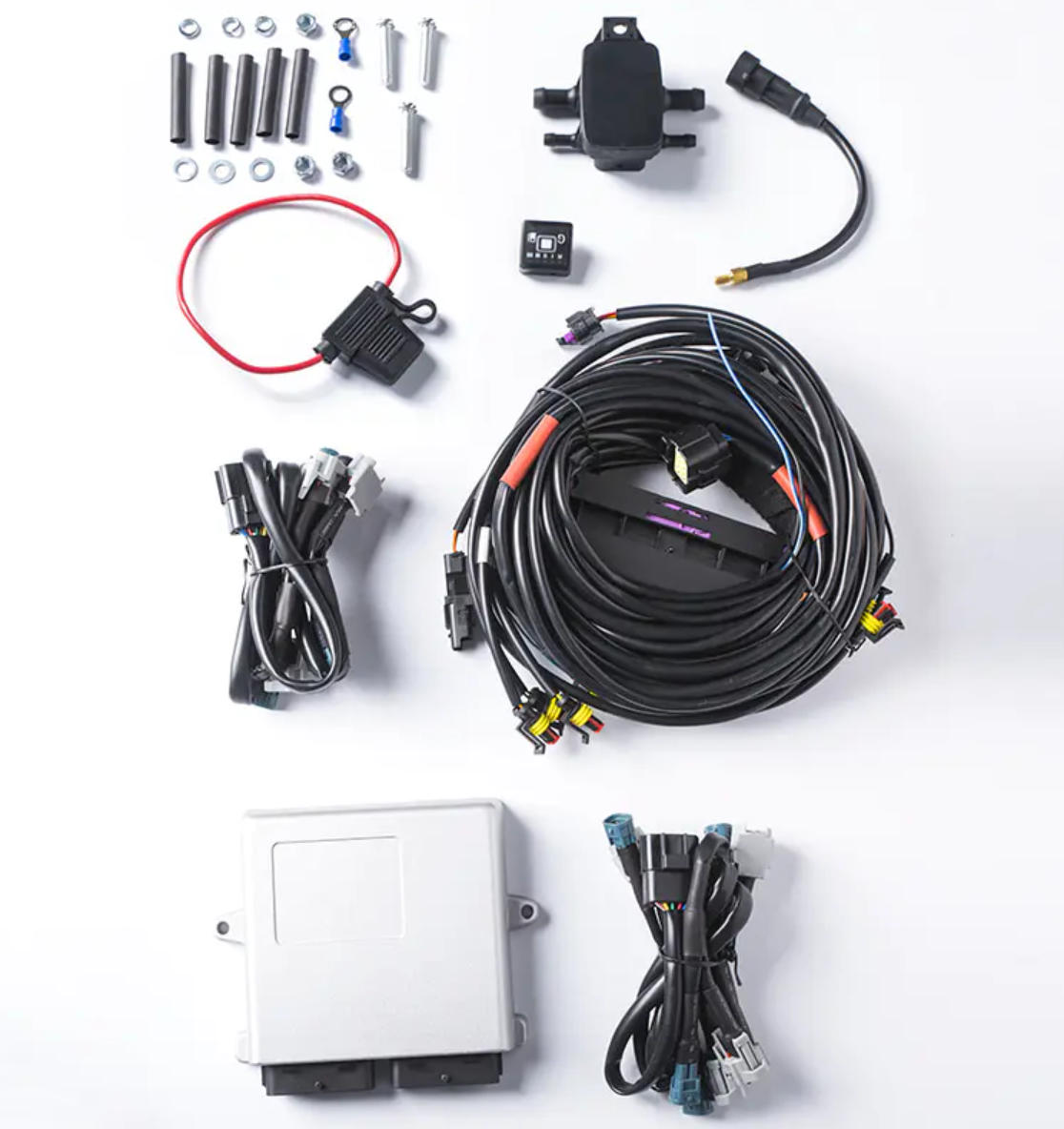

A gas ECU is only one part of a complete CNG/LPG conversion system. The controller must be matched with the required gas injectors, pressure reducer, sensors, wiring and fuel switching components.
Browse the CNG/LPG ECU product category for related controller options, or review the CNG/LPG conversion kits for complete system configurations.
Need Help Matching the ECU?
Before requesting a quotation, prepare the following:
Vehicle model and engine cylinder count
CNG or LPG application
Existing ECU model and connector photo
Wiring harness and diagnostic interface requirements
Operating temperature requirements
Quantity and target market
These details make it easier to check whether the ECU configuration fits the intended vehicle conversion project.
