Products Description

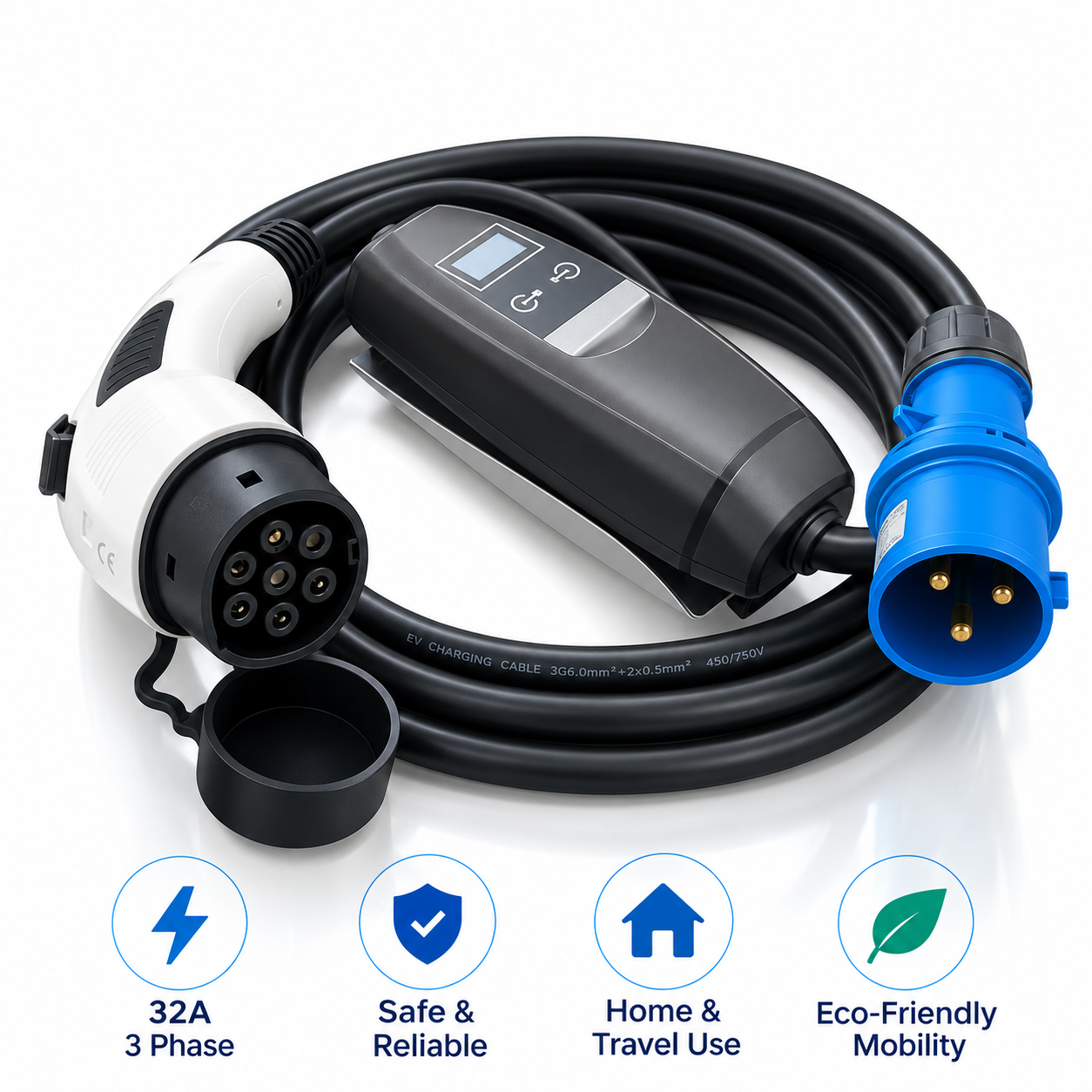

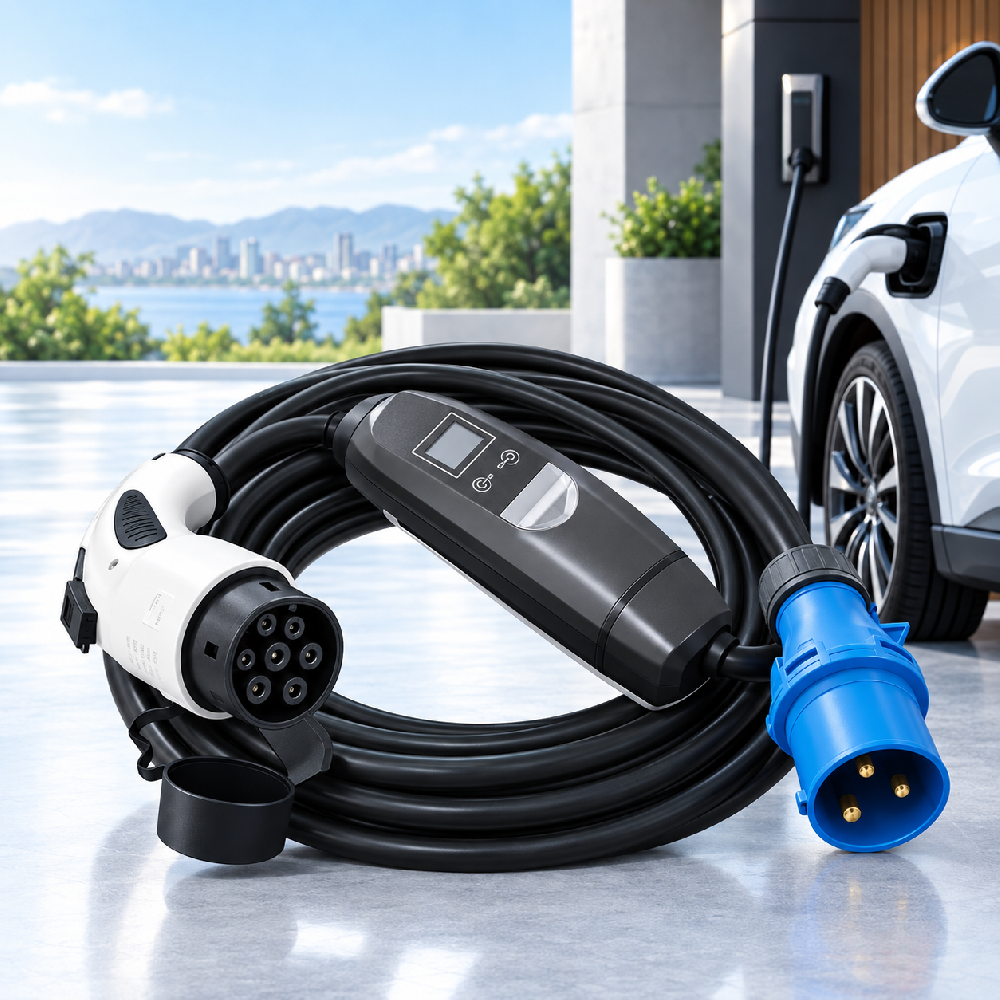

32A 3 Phase Type 2 Portable EV Charger with CEE Plug
The 32A 3 Phase Type 2 EV Charger is a portable EVSE charging solution designed for electric vehicles equipped with a compatible Type 2 charging inlet. It combines an IEC 62196 Type 2 vehicle connector, portable control box and multiple wall-side plug configurations for flexible EV charging at home, workplaces, garages and other suitable charging locations.
The standard EV charging cable length is 5 meters, with customized cable lengths available on request. Black, green and orange cable options are available. With an IP65 rating, UL94 V-0 flame-retardant specification and an operating temperature range from -30°C to 60°C, the charger is designed for demanding daily EV charging applications.
What Is a 32A 3 Phase Type 2 EV Charger?
A 32A 3 Phase Type 2 EV Charger is a portable EV charging solution combining a Type 2 vehicle connector with a wall-side power plug and control unit. This model supports a maximum 32A plug configuration, uses a standard 5-meter cable and is designed for compatible electric vehicles.
This portable EV charger provides an alternative to a permanently mounted charging station where a suitable electrical supply is available. The vehicle side uses a Type 2 connector designed around the IEC 62196 European charging interface.
The integrated control box is positioned between the power supply and the vehicle connector, creating a compact charging solution that can be transported between compatible charging locations.
32A 3 Phase EV Charger with Type 2 IEC 62196 Connector
The vehicle-side connector of this 32A 3 phase EV charger uses the Type 2 charging interface associated with IEC 62196. It is intended for electric vehicles equipped with a compatible Type 2 inlet, making the charger suitable for many EV charging applications in European and other Type 2 markets.
Type 2 is widely used for AC electric vehicle charging. Before ordering, customers should verify the charging inlet fitted to their vehicle because connector specifications can vary according to vehicle model, model year and sales market.
A Type 1 SAE J1772 vehicle-side configuration can also be discussed where required. The appropriate connector should always be selected according to the vehicle charging inlet and local electrical requirements.
32A CEE Plug EV Charger for Three Phase Charging
The 32A CEE EV charger can be configured with a 32A CEE wall-side connection for suitable electrical installations. It provides a portable solution for locations where compatible CEE power outlets are available. Plug configuration must match the electrical supply and applicable local electrical requirements.
Different wall-side plugs can be supplied according to the destination market and customer requirements. Available configurations include Australian, UK BS1363, Schuko and CEE plug options.
| Market / Plug Option | Maximum Current |
|---|---|
| Australian Plug | 10A Max |
| UK BS1363 Plug | 13A Max |
| Schuko / 16A CEE Plug | 16A Max |
| 32A CEE Plug | 32A Max |
The actual plug must be selected according to the electrical installation, socket specification and local regulations. A qualified electrician should confirm that the intended electrical circuit is appropriate before charging.
Portable Type 2 EV Charger with 5m Customizable Cable
This portable Type 2 EV charger is supplied with a standard 5-meter charging cable. Cable length can be customized for different parking, garage and charging layouts, while black, green and orange cable options are available to meet different project, distributor and customer requirements.
The 5-meter standard cable provides useful reach between the power outlet and vehicle charging port while keeping the complete charging system portable. Longer or customized cable configurations can be discussed for applications requiring additional charging distance.
Cable color options include:
Black EV charging cable
Green EV charging cable
Orange EV charging cable
Customized cable length available
Standard cable length: 5m
32A Type 2 EV Charger Technical Specifications
The 32A Type 2 EV Charger features IP65 protection, 500MΩ insulation resistance, 0.055±0.005Ω contact resistance and UL94 V-0 flame-retardant performance. It is specified for at least 10,000 mating cycles, a mating force of no more than 80N and operating temperatures from -30°C to 60°C.
| Product Type | Electric Charger for Cars |
|---|---|
| Vehicle Connector | Type 2 / IEC 62196 |
| Maximum Plug Configuration | 32A |
| Test Voltage | 110V / 250V |
| Colour | White |
| Mating Force | ≤80N |
| Insulation Resistance | 500MΩ |
| Mating Cycles | ≥10,000 |
| Contact Resistance | 0.055±0.005Ω |
| Flame Retardant | UL94 V-0 |
| IP Rating | IP65 |
| Operating Temperature | -30°C to 60°C |
| Standard Cable Length | 5m |
| Cable Colors | Black, Green, Orange |
| Custom Cable Length | Available |
IP65 Portable EV Charger for Home and Travel
The IP65 portable EV charger is designed for flexible charging at homes, workplaces, garages and travel destinations with a suitable power supply. Its portable cable design, integrated control unit and -30°C to 60°C operating range make it suitable for a variety of everyday EV charging environments.
IP65 protection helps protect the enclosure against dust and water jets under the conditions defined by the rating. It does not mean that the charger should be submerged in water or connected through an unsuitable electrical outlet.
Before every charging session, users should check the EV charging cable, vehicle connector and power-side plug for visible damage and make sure all connections are secure.
Why Choose This 32A Portable EV Charger?
This 32A portable EV charger combines a Type 2 vehicle connector, multiple wall-side plug choices, 5m standard cable, customizable cable length, IP65 protection and a wide operating temperature range. These features make it a flexible EV charging solution for distributors, projects and individual EV charging applications.
Type 2 / IEC 62196 vehicle-side connector
32A maximum plug configuration
Three-phase charging configuration available
Portable EVSE control box
IP65 protection rating
UL94 V-0 flame-retardant specification
≥10,000 mating cycles
-30°C to 60°C operating temperature
Standard 5m EV charging cable
Custom cable lengths available
Black, green and orange cable options
Multiple wall-side plug configurations
32A 3 Phase Type 2 EV Charger FAQ
Common questions about a 32A 3 Phase Type 2 EV Charger concern vehicle compatibility, CEE socket requirements, cable length, weather protection and plug options. The correct configuration depends on the vehicle inlet, available electrical supply, required current and local electrical installation standards.
Is this charger compatible with every Type 2 electric vehicle?
It is designed for electric vehicles equipped with a compatible Type 2 charging inlet. Vehicle specifications can differ by model, year and market, so the vehicle charging interface should be confirmed before ordering.
What is the standard EV charging cable length?
The standard cable length is 5 meters. Customized cable lengths are available according to customer requirements.
What cable colors are available?
Black, green and orange EV charging cables are available.
What wall-side plug options are available?
Wall-side options can include an Australian plug up to 10A, UK BS1363 plug up to 13A, Schuko or 16A CEE configuration up to 16A, and a 32A CEE configuration up to 32A. The appropriate plug depends on the destination market and electrical installation.
Is the portable EV charger waterproof?
The product has an IP65 rating. This provides defined protection against dust and water jets, but the charger should not be submerged in water. Electrical connections must always be suitable for the charging environment.
What temperature can the EV charger operate in?
The specified operating temperature range is -30°C to 60°C.
How durable is the Type 2 charging connector?
The connector specification provides a mating-cycle rating of at least 10,000 cycles and a mating force of no more than 80N.
