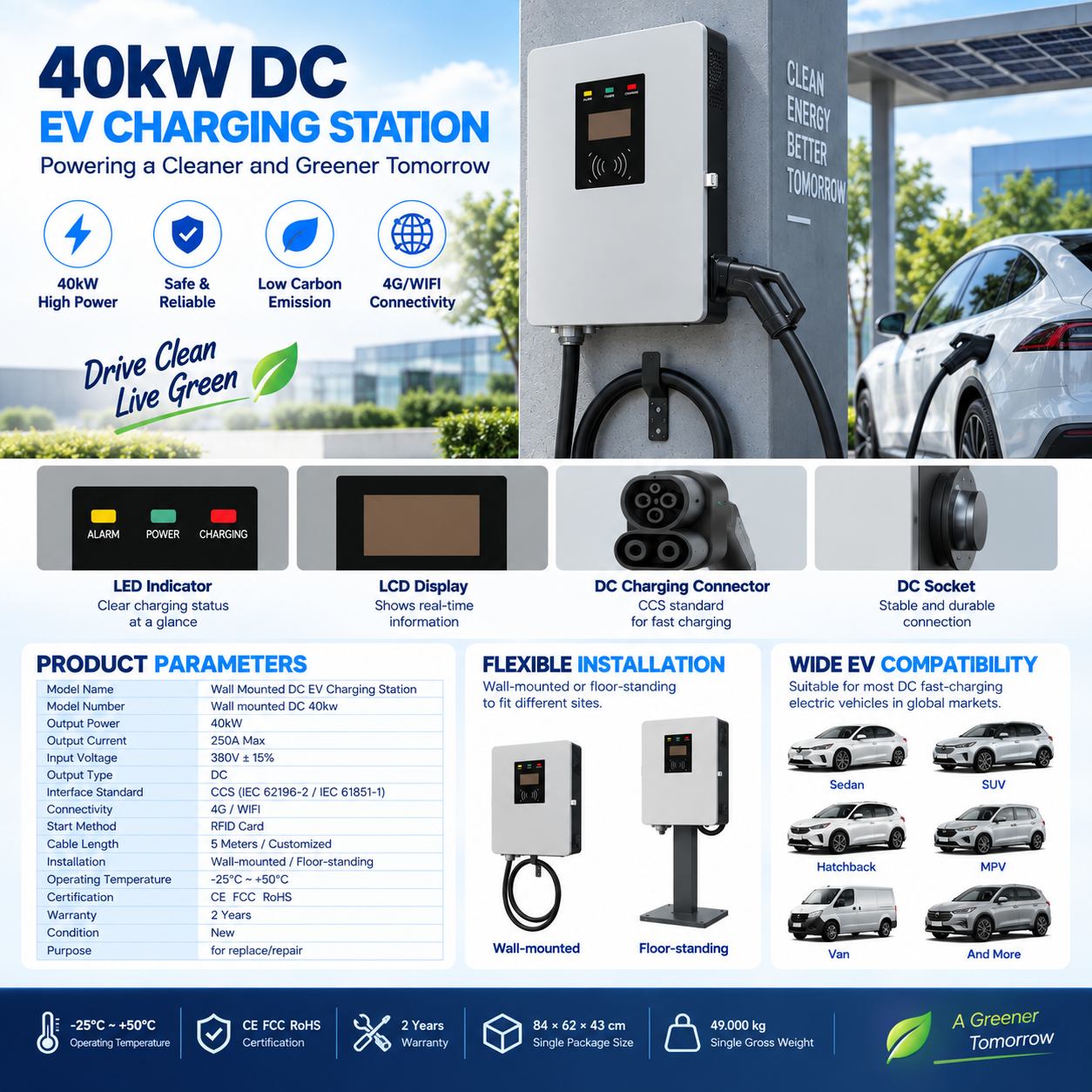

Products Description
The 40kW Wall Mounted DC EV Charging Station is a compact DC fast charging solution designed for compatible electric vehicles using a CCS charging interface. With 40kW output power, 380V±15% input, RFID card start and 4G/WiFi connectivity, it combines DC fast charging performance with flexible installation.
This 40kW DC EV charger can be installed as a wall-mounted unit or configured for floor-standing installation. A standard 5-meter charging cable is supplied, while customized cable lengths are available for different parking, commercial and EV charging applications.
40kW DC EV Charging Station for Fast EV Charging
A 40kW DC EV Charging Station supplies up to 40kW of DC charging power to compatible electric vehicles through a CCS interface. This model uses 380V±15% input power, supports up to 250A maximum output current, and combines RFID activation with 4G/WiFi connectivity for flexible EV charging applications.
Unlike an AC charging station, a DC charger supplies DC power for compatible vehicle fast-charging systems. The 40kW output makes this unit suitable for locations requiring a compact DC charging solution without using a large high-power charging cabinet.
The compact enclosure makes the 40kW DC fast charger suitable for parking areas, commercial properties, fleet locations and other sites where installation space is an important consideration.
Wall Mounted 40kW DC EV Charger with Flexible Installation
The wall mounted 40kW DC EV charger supports both wall-mounted and floor-standing installation. Its compact configuration helps reduce the space required for EV charging equipment, allowing the same 40kW charging platform to be adapted to parking areas, commercial sites and other compatible charging locations.
For locations with suitable structural walls, the charging station can be mounted directly to the wall to save ground space. Where wall installation is not practical, a floor-standing configuration can be selected.
This flexible design allows the wall mounted DC EV charging station to serve different installation environments while maintaining the same core charging specifications.
40kW CCS DC Fast Charger for Compatible Electric Vehicles
This 40kW CCS DC fast charger uses a CCS charging interface for compatible electric vehicles. The charging station is specified according to IEC 62196-2 and IEC 61851-1 information provided for this model. Vehicle connector compatibility should always be verified before installation or ordering.
CCS is widely used in the DC fast-charging market, but vehicle charging interfaces differ according to region and vehicle specification. Therefore, buyers should confirm the exact CCS configuration required by their target vehicles and market.
A vehicle being electric does not automatically mean it is compatible with every CCS charger. Always verify the vehicle's DC charging inlet before selecting a CCS EV charger.
380V 40kW DC EV Charging Station with 250A Maximum Output
The 380V 40kW DC EV charging station is specified with 380V±15% input voltage, 40kW output power and a maximum output current of 250A. The charging output is DC, providing a compact fast-charging solution for compatible vehicles and suitable electrical installations.
The available charging performance in actual use depends on both the charging station and the electric vehicle. A vehicle may request less power than the charger's maximum capability depending on battery condition, vehicle charging limits and other operating conditions.
The electrical supply and installation should therefore be evaluated by a qualified professional according to local electrical requirements before the 40kW EV charging station is installed.
Smart DC EV Charger with RFID, 4G and WiFi Connectivity
The smart DC EV charger supports RFID card activation and 4G/WiFi connectivity. RFID provides a convenient method for authorized users to start charging sessions, while network connectivity gives the charging station a foundation for connected EV charging applications requiring wireless communication.
RFID card start is particularly useful for workplaces, fleet parking areas, commercial properties and other locations where access to the40kW DC EV charger needs to be controlled.
The charging unit also incorporates status indicators and a display interface to provide charging information directly at the station.
5 Meter Cable 40kW Wall Mounted DC Fast Charger
The 40kW wall mounted DC fast charger comes with a standard 5-meter charging cable, providing practical reach between the charging station and a compatible vehicle. Cable length can also be customized, allowing the charger configuration to accommodate different parking layouts and installation requirements.
Charging cable length is an important consideration when planning an EV charging location. The charging station should be positioned so that the cable can reach the vehicle charging inlet without unnecessary tension.
For projects where the standard 5-meter cable is not suitable, customized cable lengths can be discussed according to installation requirements.
40kW DC EV Charger Technical Specifications
The 40kW DC EV charger combines 40kW output power, 380V±15% input, CCS interface, up to 250A maximum output current, RFID card start, 4G/WiFi connectivity and a standard 5-meter cable. Operating temperature is specified from -25°C to +50°C with a two-year warranty.
| Product Name | Wall Mounted DC EV Charging Station |
|---|---|
| Model Number | Wall Mounted DC 40kW |
| Output Power | 40kW |
| Interface Standard | CCS |
| Input Voltage | 380V±15% |
| Output Type | DC |
| Maximum Output Current | 250A Max |
| Standard | IEC 62196-2 / IEC 61851-1 |
| Operating Temperature | -25°C to +50°C |
| Connectivity | 4G / WiFi |
| Start Method | RFID Card |
| Cable Length | 5 Meters / Customized |
| Installation | Wall-mounted / Floor-standing |
| Certification | CE / FCC / RoHS |
| Warranty | 2 Years |
| Condition | New |
Where Can a 40kW DC Fast Charging Station Be Installed?
A 40kW DC fast charging station can be considered for commercial parking areas, workplaces, fleet locations and other sites with a suitable electrical supply and compatible EV charging requirements. Wall-mounted and floor-standing options provide installation flexibility where available space and site layouts differ.
The compact installation format can be useful for locations where a larger charging cabinet would occupy unnecessary space. Similar 40kW wall-mounted DC charger products are marketed for parking lots, commercial sites and limited-space deployments.
Before installation, the electrical supply, mounting location, cable route and vehicle connector requirements should all be evaluated for the specific project.

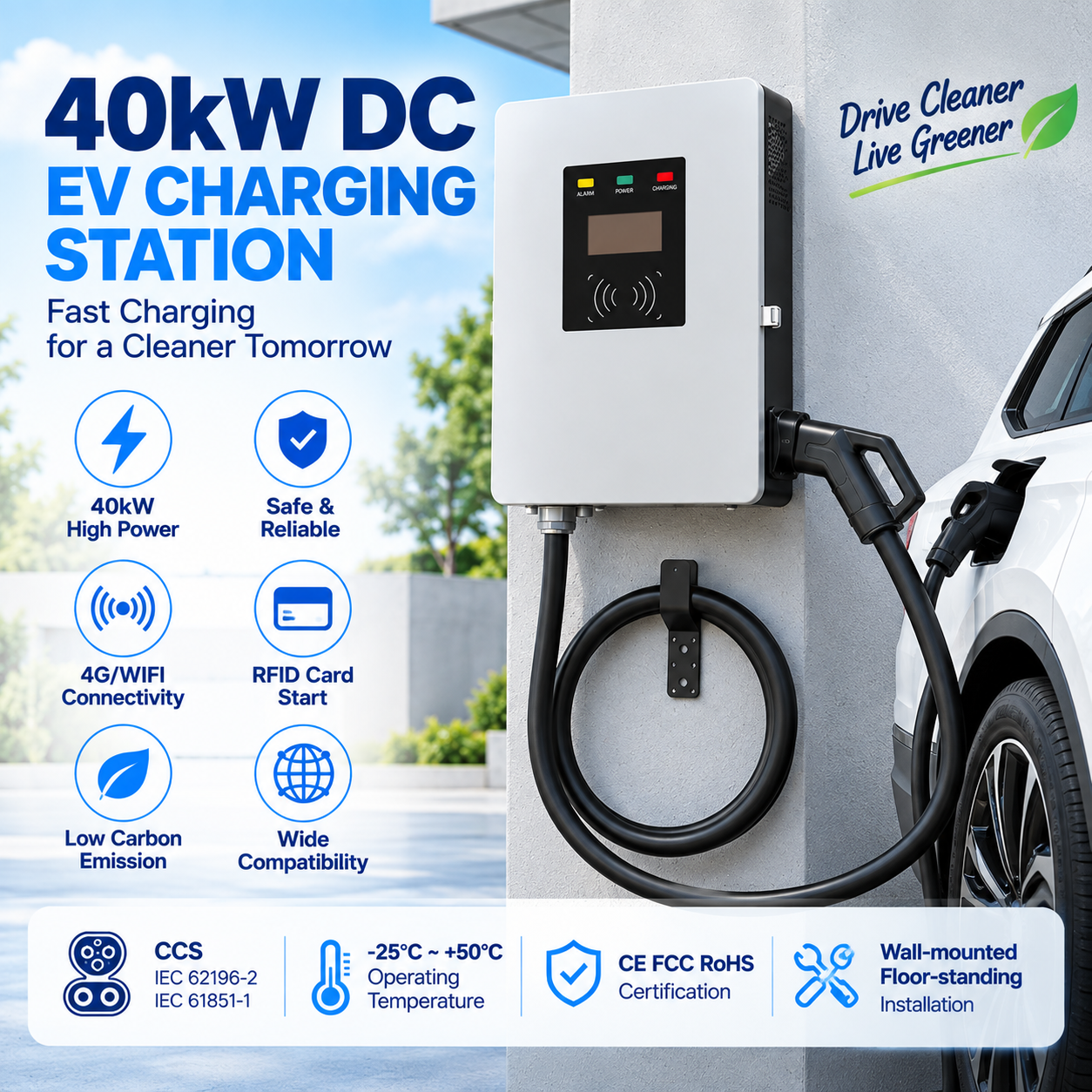

40kW Wall Mounted DC EV Charging Station Packaging
Each 40kW Wall Mounted DC EV Charging Station is packed as a single unit. The specified single-package dimensions are 84 × 62 × 43 cm with a gross weight of 49 kg, providing clear shipping information for distributors, project buyers and international EV charging equipment orders.
| Selling Units | Single Item |
|---|---|
| Single Package Size | 84 × 62 × 43 cm |
| Single Gross Weight | 49 kg |
40kW DC EV Charging Station FAQ
Buyers comparing a 40kW DC EV charging station commonly need to confirm charging power, CCS compatibility, input voltage, installation method, connectivity and cable length. This model provides 40kW DC output, 380V±15% input, RFID activation, 4G/WiFi connectivity and wall-mounted or floor-standing installation.
What is a 40kW DC EV charger?
A 40kW DC EV charger is an electric vehicle charging station capable of providing up to 40kW of DC charging power to a compatible electric vehicle. This model uses a CCS charging interface.
What input voltage does this 40kW DC charger require?
The specified input voltage is 380V±15%. The electrical installation should be evaluated according to local requirements before the charging station is installed.
Does this 40kW DC charger support CCS vehicles?
Yes. The specified charging interface is CCS. Buyers should confirm the exact connector configuration and their vehicle's DC charging inlet before ordering.
What is the maximum output current?
The specified maximum output current is 250A.
Can the DC EV charger be wall mounted?
Yes. Wall-mounted installation is supported. A floor-standing installation configuration is also available for locations where wall mounting is not appropriate.
Does the EV charger support RFID cards?
Yes. RFID card is the specified start method for this 40kW DC EV charging station.
Does the charging station support WiFi and 4G?
Yes. The specified connectivity options are 4G and WiFi.
How long is the charging cable?
The standard charging cable length is 5 meters. Customized cable lengths are available according to project requirements.
What is the operating temperature?
The specified operating temperature range is -25°C to +50°C.
What is the warranty period?
The specified warranty period for the charging station is two years.
