Products Description
The 16A Type 1 portable EV charger is a compact Mode 2 charging solution designed for compatible electric and plug-in hybrid vehicles using a Type 1 vehicle charging inlet. It combines a Type 1 charging connector, inline EVSE control box, durable charging cable and red CEE plug in one portable charging system.
Designed for portable EV charging applications, the charger features an IP65 rating, UL94 V-0 flame-retardant specification, 500MΩ insulation resistance and an operating temperature range from -30°C to 60°C. The charging connector is specified for at least 10,000 mating cycles.

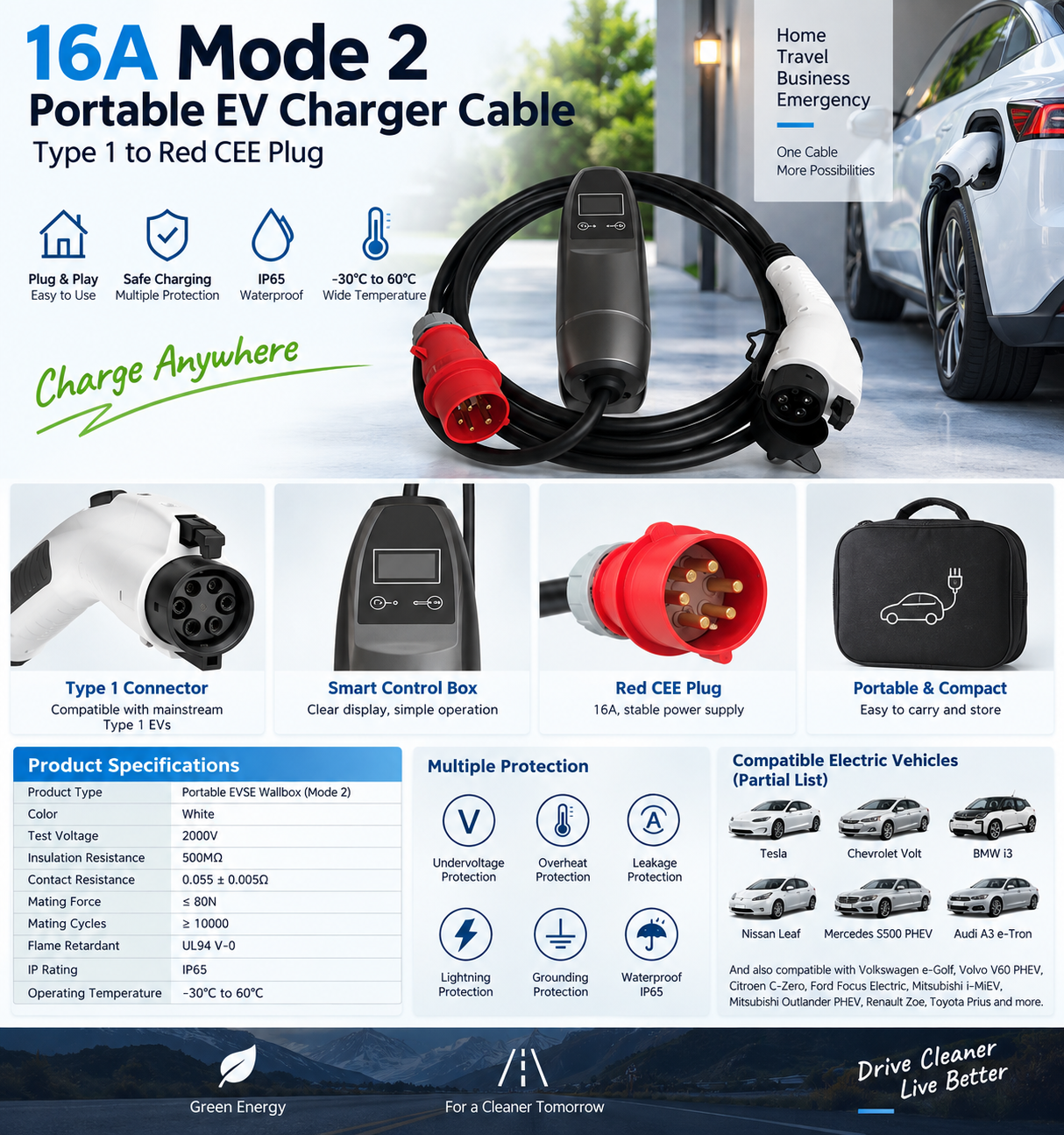

16A Type 1 Portable EV Charger for Mode 2 Charging
The 16A Type 1 portable EV charger combines a Type 1 vehicle connector, red CEE plug and inline Mode 2 EVSE control unit. It is designed as a portable charging cable for compatible electric and plug-in hybrid vehicles, with IP65 protection and an operating temperature range of -30°C to 60°C.
Unlike a permanently installed wall-mounted charging station, thisportable EV charger cable integrates the charging cable, vehicle connector and control unit into a transportable assembly.
The compact design makes the Mode 2 EV charger suitable for users who need a charging cable that can be stored with the vehicle and used where a compatible power supply is available.
Type 1 EV Charger with J1772 Vehicle Connector
This Type 1 EV charger uses a vehicle-side connector designed for compatible Type 1 charging inlets. Type 1 is commonly associated with the SAE J1772 AC charging interface. Vehicle compatibility should always be confirmed by checking the charging inlet, model year and regional vehicle specification before ordering.
The white vehicle-side charging connector provides the interface between the portable EVSE and a compatible electric vehicle.
Because the same vehicle model can use different charging interfaces in different markets, buyers should identify the actual charging socket on the vehicle rather than selecting a charger based only on the vehicle brand or model name.

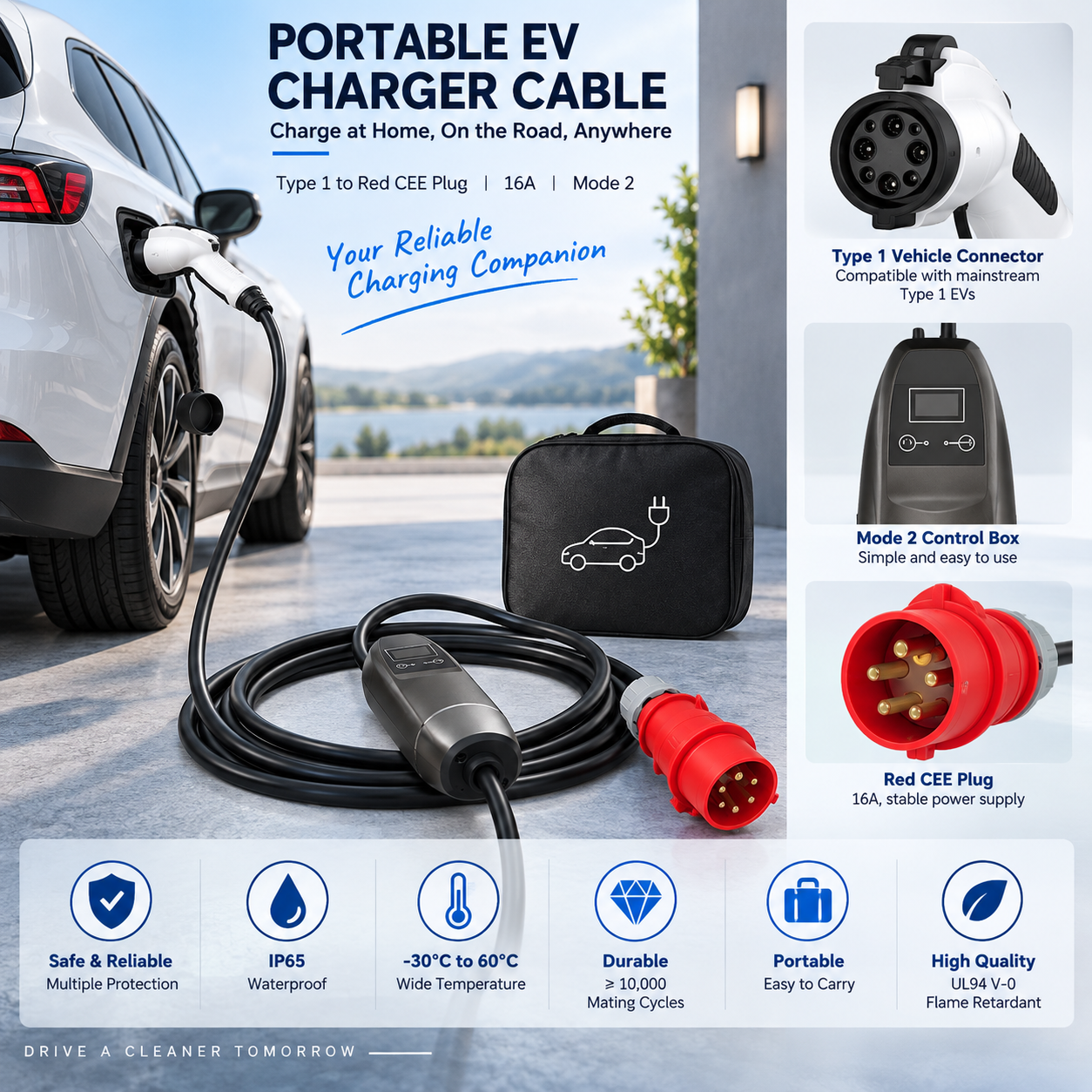

Red CEE Plug Portable EV Charger Cable
The red CEE plug portable EV charger uses an industrial-style power-side connector together with a Type 1 vehicle connector and inline Mode 2 control box. The power outlet must match the supplied CEE plug and the electrical requirements of the selected charger before the EVSE is connected for charging.
The red CEE connector provides the power-side connection for this16A portable EV charger. Its industrial plug format makes the product different from portable chargers designed around ordinary domestic wall plugs.
Before use, the socket configuration, voltage, current capacity, grounding and local electrical requirements should be checked by a qualified person. Do not select the charger solely by the color of the CEE connector.
Mode 2 Portable EV Charger with Inline Control Box
A Mode 2 portable EV charger incorporates an inline EVSE control unit between the power source and vehicle charging connector. This product combines the control box with a Type 1 connector and red CEE plug, creating a compact charging cable intended for portable electric vehicle charging applications.
The inline control unit is positioned directly on the cable, helping create an integrated portable charging solution without requiring the main EVSE enclosure to be permanently fixed to a wall.
This design is useful for EV owners who want a portable charging solution that can be carried in the vehicle when required.
IP65 Type 1 Portable EV Charger
The Type 1 portable EV charger has a specified IP65 rating and operates from -30°C to 60°C. IP65 indicates protection against dust ingress and water jets under the applicable test conditions; it does not mean the charger is intended for immersion in water or unrestricted use in every environment.
The wide specified operating temperature range supports charging applications across different climates, while the IP65 enclosure rating adds environmental protection for the EVSE equipment.
Connectors, sockets and electrical connections should still be kept in appropriate operating conditions, and the equipment should be used according to installation and electrical safety requirements.
Durable Type 1 EV Charging Connector
The connector on this Type 1 EV charger cable is specified for at least 10,000 mating cycles with a mating force of no more than 80N. Electrical specifications include 500MΩ insulation resistance, 0.055±0.005Ω contact resistance and a 2000V test voltage.
These specifications provide measurable information for distributors, installers and EV charging equipment buyers comparing portable EVSE products.
The enclosure material is specified with a UL94 V-0flame-retardant classification, while the connector durability rating supports repeated connection and disconnection during normal charging use.

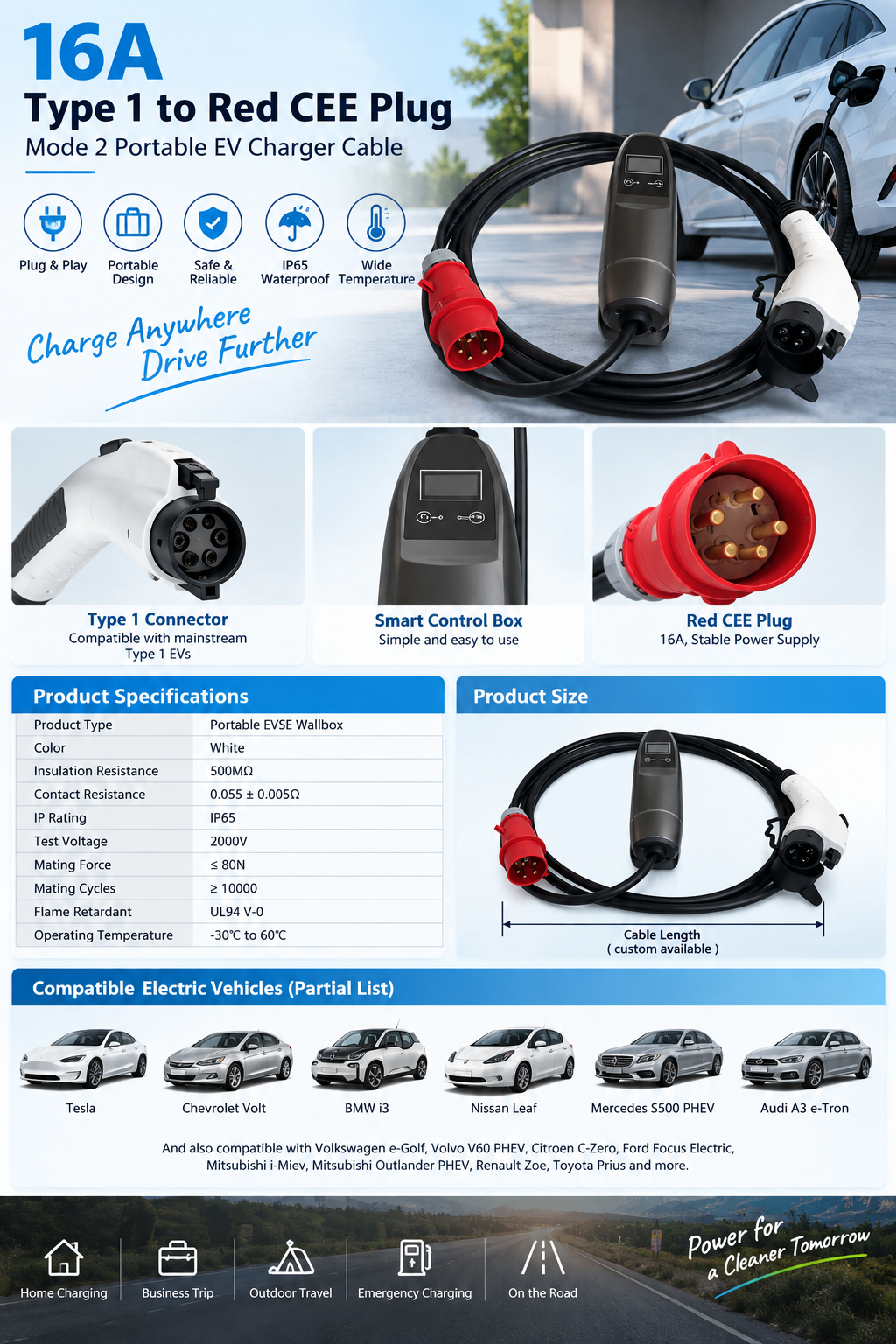

16A Type 1 Portable EV Charger Specifications
The 16A Type 1 portable EV charger is specified with a 2000V test voltage, 500MΩ insulation resistance, ≤80N mating force, ≥10,000 mating cycles, 0.055±0.005Ω contact resistance, UL94 V-0 flame-retardant classification, IP65 rating and -30°C to 60°C operating temperature.
| Product Name | 16A Type 1 to Red CEE Plug Mode 2 Portable EV Charger Cable |
|---|---|
| Product Type | Portable EVSE / Mode 2 EV Charger |
| Rated Current | 16A |
| Vehicle Connector | Type 1 |
| Power-Side Connector | Red CEE Plug |
| Charging Mode | Mode 2 |
| Color | White |
| Test Voltage | 2000V |
| Insulation Resistance | 500MΩ |
| Contact Resistance | 0.055±0.005Ω |
| Mating Force | ≤80N |
| Mating Cycles | ≥10,000 |
| Flame Retardant | UL94 V-0 |
| IP Rating | IP65 |
| Operating Temperature | -30°C to 60°C |
Electric Vehicle Compatibility for Type 1 EV Charger
This Type 1 portable EV charger is intended for vehicles equipped with a compatible Type 1 charging inlet. Compatibility depends on the vehicle's charging port, model year and sales region. Buyers should verify the actual vehicle inlet before ordering rather than relying only on a vehicle model list.
Depending on model year and regional specification, Type 1 charging configurations may be found on electric or plug-in hybrid vehicles from manufacturers represented in the supplied compatibility reference, including Chevrolet, BMW, Nissan, Mercedes-Benz, Audi, Volkswagen, Volvo, Citroën, Ford, Mitsubishi and Toyota.
The supplied reference also lists vehicles such as Chevrolet Volt, BMW i3, BMW i8, Nissan Leaf, Audi A3 e-Tron, Volkswagen e-Golf, Volvo V60 PHEV, Citroën C-Zero, Ford Focus Electric, Mitsubishi i-MiEV, Mitsubishi Outlander PHEV and Toyota Prius.
Important: this list should not be interpreted as universal compatibility. The same model may use Type 1, Type 2 or another charging interface depending on country, generation and production year.
Why Choose a 16A Portable EV Charger Cable?
A 16A portable EV charger cable provides a compact charging solution for compatible vehicles and suitable power outlets. This model combines a Type 1 vehicle connector, red CEE plug, inline Mode 2 EVSE, IP65 rating, -30°C to 60°C operation and a connector rated for at least 10,000 mating cycles.
16A portable charging configuration
Type 1 vehicle-side charging connector
Red CEE power-side plug
Integrated Mode 2 EVSE control box
IP65 protection rating
-30°C to 60°C operating temperature
≥10,000 connector mating cycles
500MΩ insulation resistance
UL94 V-0 flame-retardant specification
16A Type 1 Portable EV Charger FAQ
When selecting a 16A Type 1 portable EV charger, buyers should verify the vehicle charging inlet, CEE socket configuration and electrical supply. Important product specifications include the Type 1 vehicle connector, Mode 2 control box, 16A configuration, IP65 rating, ≥10,000 mating cycles and -30°C to 60°C operating range.
What is a Type 1 portable EV charger?
A Type 1 portable EV charger is a portable EVSE equipped with a Type 1 vehicle-side charging connector. This product combines the connector with an inline Mode 2 control box and red CEE power plug.
Is this a Mode 2 EV charger?
Yes. The supplied product specification identifies it as a Mode 2 portable EV charger cable with an inline EVSE control unit.
What current does the portable EV charger support?
This product is specified as a 16A portable EV charger. The available electrical supply and outlet must be appropriate for the selected charger.
Is this portable EV charger IP65 rated?
Yes. The supplied specification lists an IP65 rating. IP65 describes protection against dust and water jets under specified test conditions and should not be interpreted as suitability for underwater use.
What is the operating temperature?
The specified operating temperature range is -30°C to 60°C.
How durable is the Type 1 charging connector?
The connector is specified for at least 10,000 mating cycles and a mating force of no more than 80N.
Can I use this charger with a Nissan Leaf or Chevrolet Volt?
Some versions of these vehicles have used Type 1 charging interfaces, but compatibility varies by model year and market. Check the actual charging inlet on the vehicle before ordering.
Can this charger work with every Tesla?
No universal Tesla compatibility should be assumed. Charging interfaces and adapter requirements differ by model, generation and sales region. Verify the vehicle inlet and any required adapter before use.
