Welcome to the SCYUNCHENG Technical Support Center. This page provides the official component breakdown, part reference numbers, and installation guide for our CNG/LPG Reducer Repair Kits. Use the exploded diagram and parts list below to correctly identify and replace internal wearing components during pressure regulator maintenance.

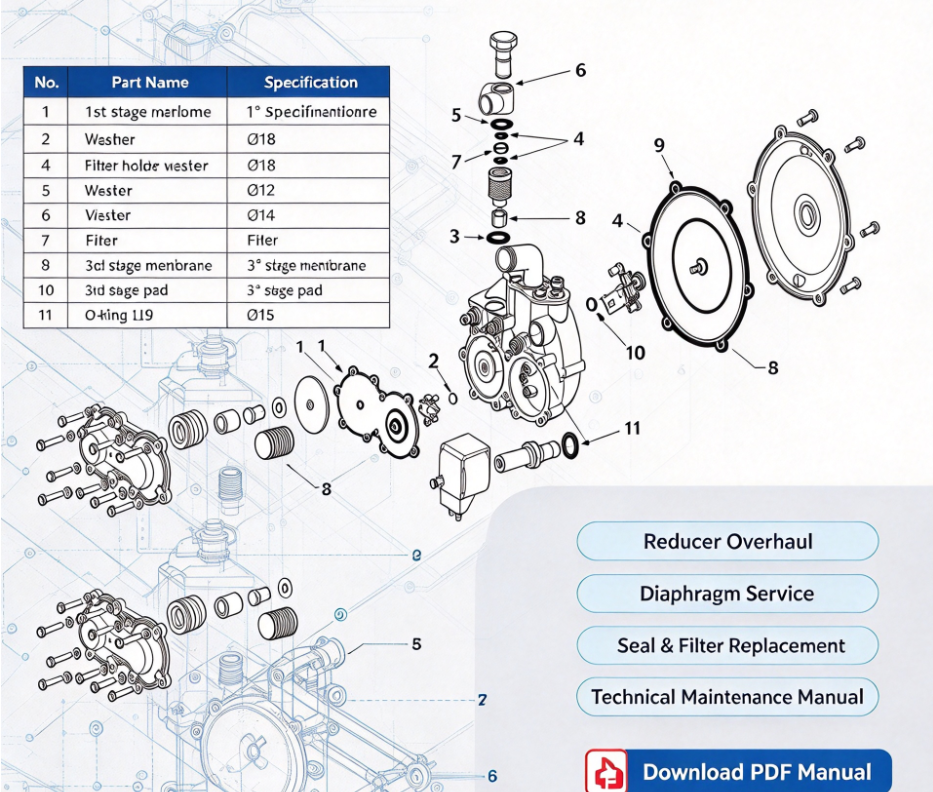

1. Reducer Exploded View & Parts Breakdown
Proper maintenance of multi-stage CNG/LPG reducers requires precise replacement of internal diaphragms, seals, and filter elements. Refer to the standard component list below:
| No. | Component Name (English Technical Term) | Function / Application Description |
|---|---|---|
| 1 | 1° - 2° Stage Membrane (Diaphragm) | Regulates primary and secondary gas pressure chambers. |
| 2 | 2° Stage Pad | Sealing pad for second-stage pressure control. |
| 3 | Washer Øi 18 | Sealing washer (Inner diameter 18mm). |
| 4 | Filter Holder Washer | Supports and secures the high-pressure gas filter unit. |
| 5 | Washer Øi 12 | Connection sealing washer (Inner diameter 12mm). |
| 6 | Washer Øi 14 | Inlet/outlet fitting washer (Inner diameter 14mm). |
| 7 | Filter Element | Filters impurities and debris from incoming high-pressure gas. |
| 8 | 1° Stage Valve | Controls initial high-pressure gas reduction stage. |
| 9 | 3° Stage Membrane (Diaphragm) | Final stage low-pressure sensitive diaphragm. |
| 10 | 3° Stage Pad | Final stage valve pad for stable idle flow. |
| 11 | O-Ring 119 Øi 15 | High-pressure sealing O-ring (Inner diameter 15mm). |
2. Maintenance & Installation Guidelines
Safety First: Always close the cylinder manual valve and depressurize the system completely before disassembling the reducer.
Cleanliness: Ensure the inner chambers and valve seats are free from oil residues, dust, or metal particles before installing new diaphragms (Items 1 & 9) and pads (Items 2 & 10).
Seal Replacement: Always replace all matching washers (Items 3, 4, 5, 6) and O-rings (Item 11) simultaneously to prevent gas leakage.
3. Download Technical Resources
Access and download our official documentation and parts reference sheets below:
📄 CNG/LPG Reducer Repair Kit Parts Breakdown & Diagram (PDF)
CNG LPG Reducer Repair Kit & Diaphragm Maintenance Guide.pdf
